01

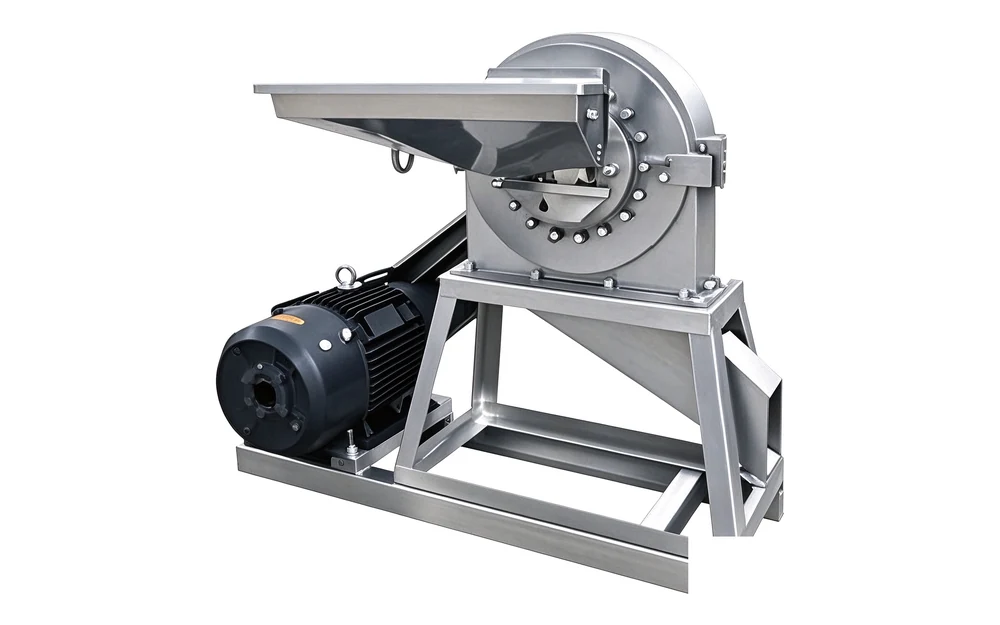

Standalone Pin Mill
Simple & Compact
- Compact standalone design
- Lower investment
- Easy operation & maintenance
Best for: Standard grinding applications where dedicated dust collection is not required.
Since 2012Manufacturer, Zhengzhou
4,000 m²Factory area
80+Machines
ISO9001 · CECertified quality
40+ countriesExport experience
Core equipment
Choose the Right Grinding System for Your Production
From standalone grinders to complete grinding systems, configurations are selected based on your material, capacity and target fineness.
02

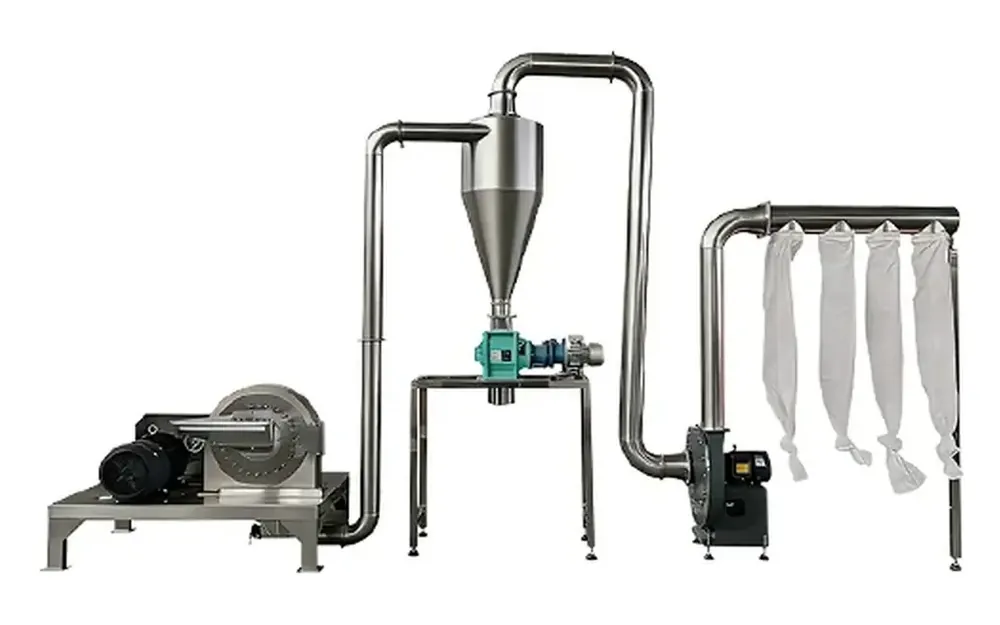

Pin Mill with Dust Collector
Efficient Dust Collection
- High-pressure fan
- Independent dust collection
- Suitable for continuous production
- Practical industrial configuration
Best for: Factories requiring effective dust collection during continuous grinding.
03

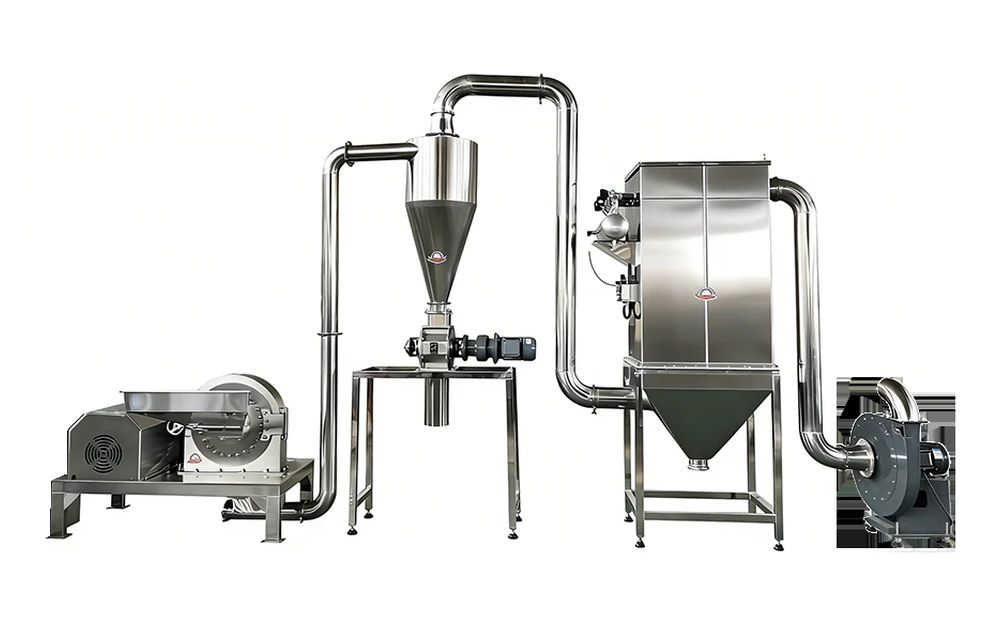

Pin Mill with Enclosed Pulse Dust Collector
Cleaner & More Integrated
- Enclosed dust-collection structure
- Pulse cleaning for filter bags
- Cleaner, more integrated appearance
- Better suited to hygienic production areas
Best for: Food, spice and sugar-powder plants where workshop cleanliness and equipment integration matter.
Common model specifications
One shared mill platform for configurations 01–03 (standalone, with dust collector, and enclosed pulse). Dust-collection options change the system layout — not these base model figures.
| Model | Capacity | Dimensions (mm) | Power | Weight | Voltage | Fineness (mesh) |
|---|---|---|---|---|---|---|
| 200 | 3–50 kg/h | 700 × 650 × 1020 | 3 kW | 103 kg | 220 V | 10–120 |
| 300 | 60–150 kg/h | 910 × 830 × 1100 | 4 kW | 147 kg | 380 V | 10–120 |
| 400 | 200–400 kg/h | 1180 × 840 × 1260 | 7.5 kW | 197 kg | 380 V | 10–120 |
| 500 | 300–500 kg/h | 1260 × 920 × 1300 | 11 kW | 315 kg | 380 V | 10–120 |
| 600 | 400–600 kg/h | 1350 × 930 × 1350 | 15 kW | 408 kg | 380 V | 10–120 |
| 800 | 500–1000 kg/h | 1620 × 1130 × 1660 | 22 kW | 460 kg | 380 V | 10–120 |
| 1000 | 800–1200 kg/h | 1870 × 1170 × 1800 | 30 kW | 550 kg | 380 V | 10–120 |
Parameters are for reference only. Final figures follow the confirmed configuration; custom builds are available on request.
Typical materials
What Materials Can Our Pin Mills Process?
Suitable for a wide range of dry materials. Grinding performance and capacity vary by material — send us your material for model selection and testing.
Spices & Seasonings
Chili · Black Pepper · Cumin · Turmeric · Dried Herbs · Seasoning Ingredients
Food & Natural Ingredients
Sugar · Salt · Eggshells · Dehydrated Vegetables · Dried Fruits
Not sure if your material is suitable? Send us a photo or sample for evaluation.

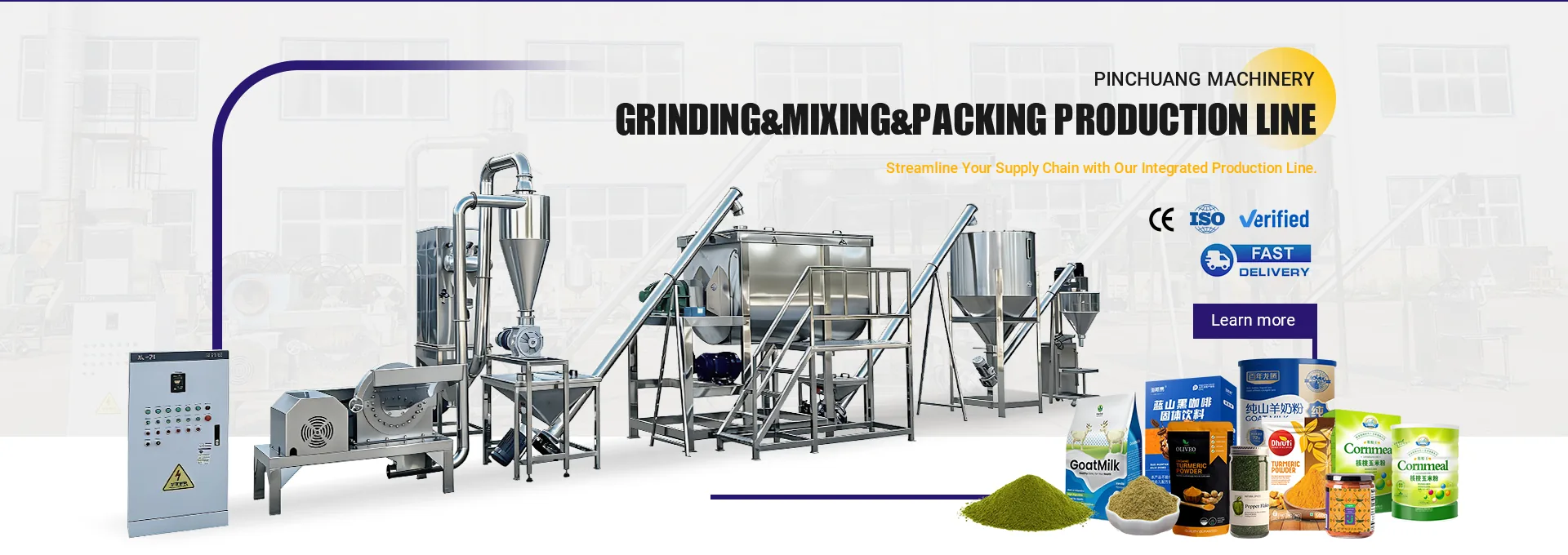

Complete spice line
From Raw Material to Finished Powder
Complete powder processing lines customized to your material, capacity and production requirements.
- 1Feeding — Stable and continuous material feeding
- 2Grinding — Grinding to the required particle size
- 3Dust Collection — Collect powder and control dust during production
- 4Mixing — Uniform mixing for powders and ingredients

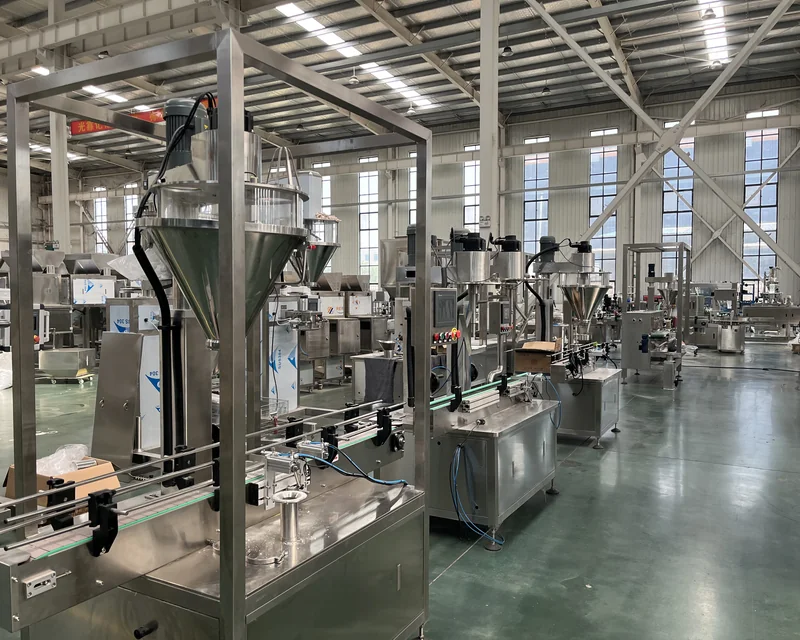

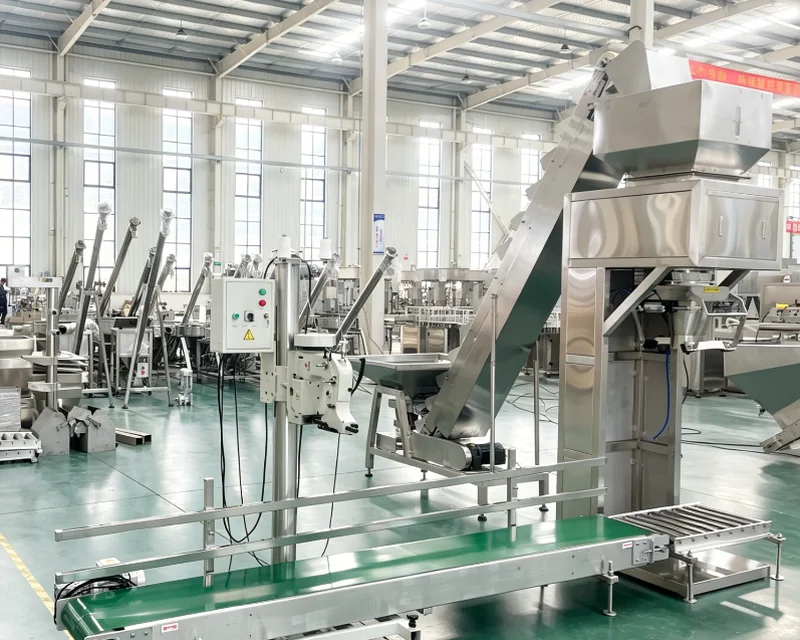

- 5Packaging — Quantitative filling and packaging
Each system is customized — choose only the processing steps your production requires.
Source factory

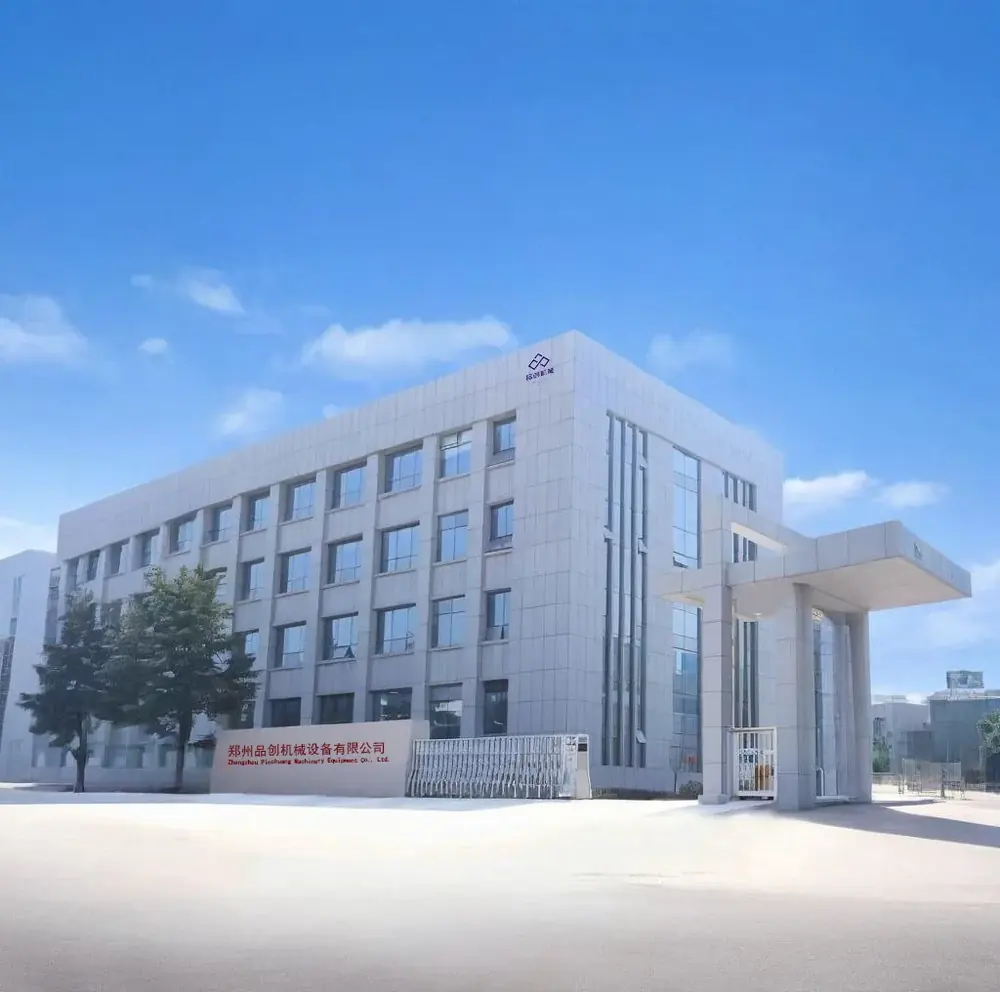

Built in our Zhengzhou workshops

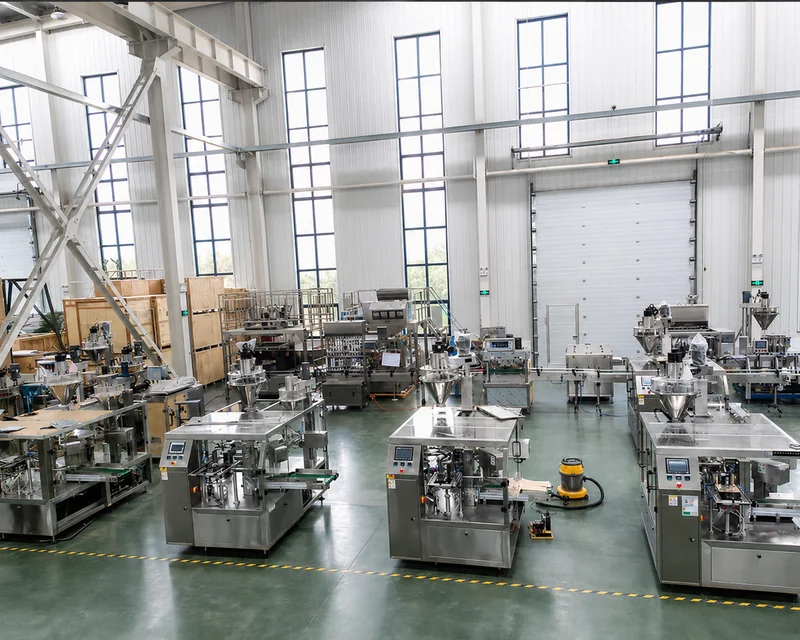

Four standardized workshops, in-house manufacturing, and certified export packing for sea, air or door-to-door delivery.
What you get when you work with us

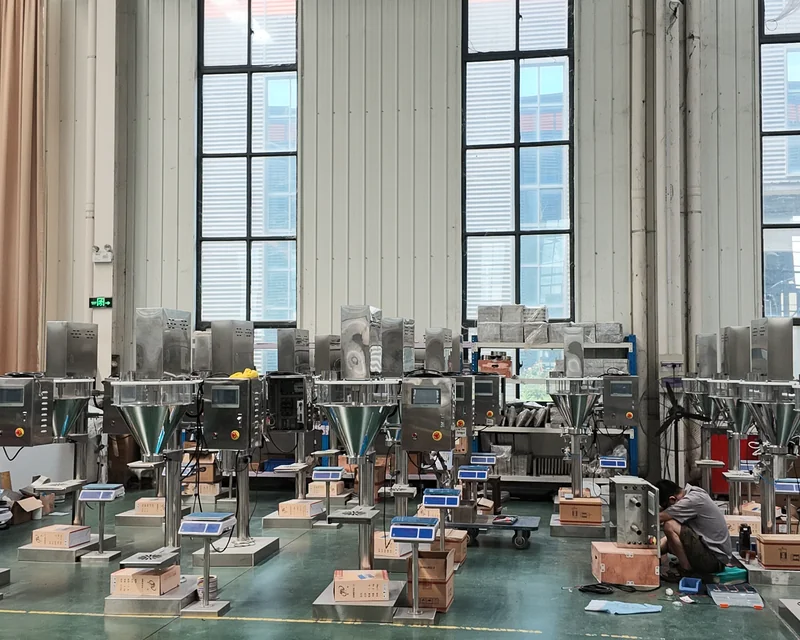

- In-house Manufacturing — Grinding, mixing and powder handling equipment manufactured and assembled in our factory.
- Stainless Steel Fabrication — SUS304 / SUS316L options for food and powder processing applications.
- Customization & Engineering — Machine configuration, production line layout and CAD drawings available for custom projects.
- Export & After-sales Support — Export-standard packing, operation guidance, spare parts and technical support.
Project references
Spice lines shipped worldwide
Lines selected by material — chili, pepper, cumin and more. Capacity is confirmed after reviewing your material and target output.
Chili
Grinding & mixing capacity on request
Dried chili to powder line with heat control and even particle size. Final model follows your material and target output.
Ask for a similar quote

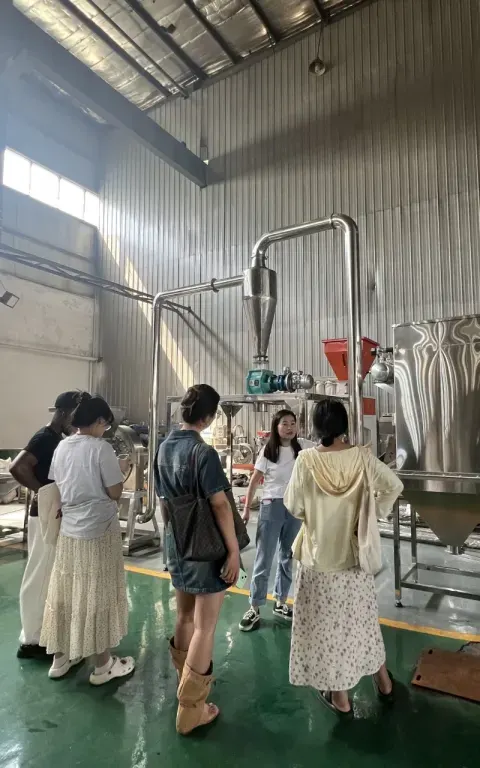

Black Pepper
Grinding & dust collection capacity on request
Pepper grinding with dust collection for cleaner powder and less aroma loss. Specs confirmed after sample review.
Ask for a similar quote

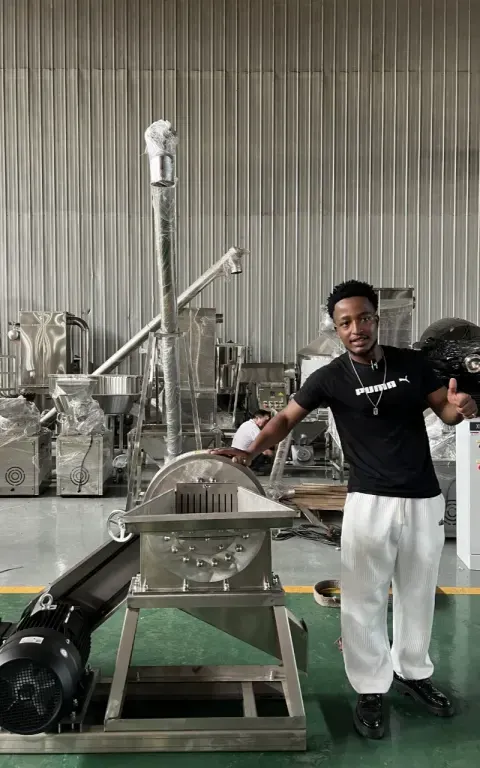

Cumin
Grinding & mixing capacity on request
Cumin seed grinding and mixing for seasoning plants. Line size matched to your throughput after material check.
Ask for a similar quote

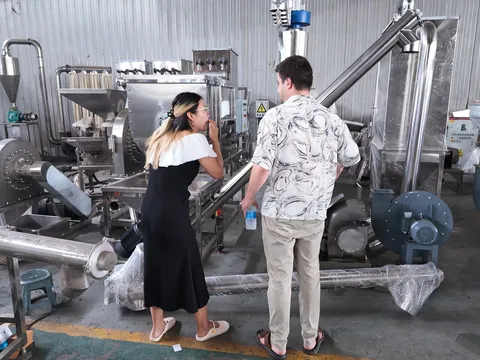

Turmeric
Pin mill line capacity on request
Turmeric rhizome grinding with stainless contact parts for food-grade powder. Capacity confirmed with your sample.
Ask for a similar quote
Seasoning Blend
Multi-spice system capacity on request
Multi-spice seasoning lines from feeding to grinding. Configuration follows your recipe and output goal.
Ask for a similar quote
Dried Herbs
Grind & mix line capacity on request
Dried herb grinding and mixing setups sized after sample review with the buyer.
Ask for a similar quoteHow we work
From material review to commissioning
Sample trials, process design, in-house QC, then installation guidance and spare-parts support.
01
Material & testing
We evaluate material, fineness and capacity. Sample trials help confirm the right mill before you invest.
02
Process design
Grinding, mixing, conveying, dust collection and packaging — from a single mill to a complete line.
03
Manufacturing & QC
In-house production with quality control at machining, welding and assembly before shipment.
04
Commissioning
Export packing, installation guidance, operator training and ongoing spare-parts support.
FAQ
Before you order
How is the right model selected?
We need the material, bulk density, moisture, initial and final size, capacity, working hours and electrical supply. With this data we recommend the model and auxiliary equipment.
Do you process oily spices?
Yes, after selecting equipment through testing.
How quickly do you reply?
We typically reply within 24 hours on working days. For urgent requests, contact us on WhatsApp.
Spare parts and installation?
Yes. Stocked components, installation guidance, operator training and responsive after-sales support help keep your line running.
How is equipment packed for export?
Certified export wooden cases with anti-rust treatment and impact-resistant reinforcement. Sea, air and door-to-door options are available.
How is aroma loss avoided?
By controlling moisture, residence time and temperature. Spice lines can use refrigerated grinding, uniform feeding and dust collection.
Can you test my material?
When the project requires it, we recommend a material test to confirm capacity, process results and configuration before manufacturing.
Get a quote
Tell us material & capacity
Reply within 24 hours
Material testing available
Spare parts & training
Data needed: material, capacity (kg/h), target mesh — plus moisture, feed size and voltage if known.
