Receiving and cleaning
Grains and meals are received, inspected and cleaned to remove impurities before processing.
COMPLETE PROCESS
From raw material to packaged product
A well-designed plant controls particle size, dosing accuracy and nutritional homogeneity in every batch.

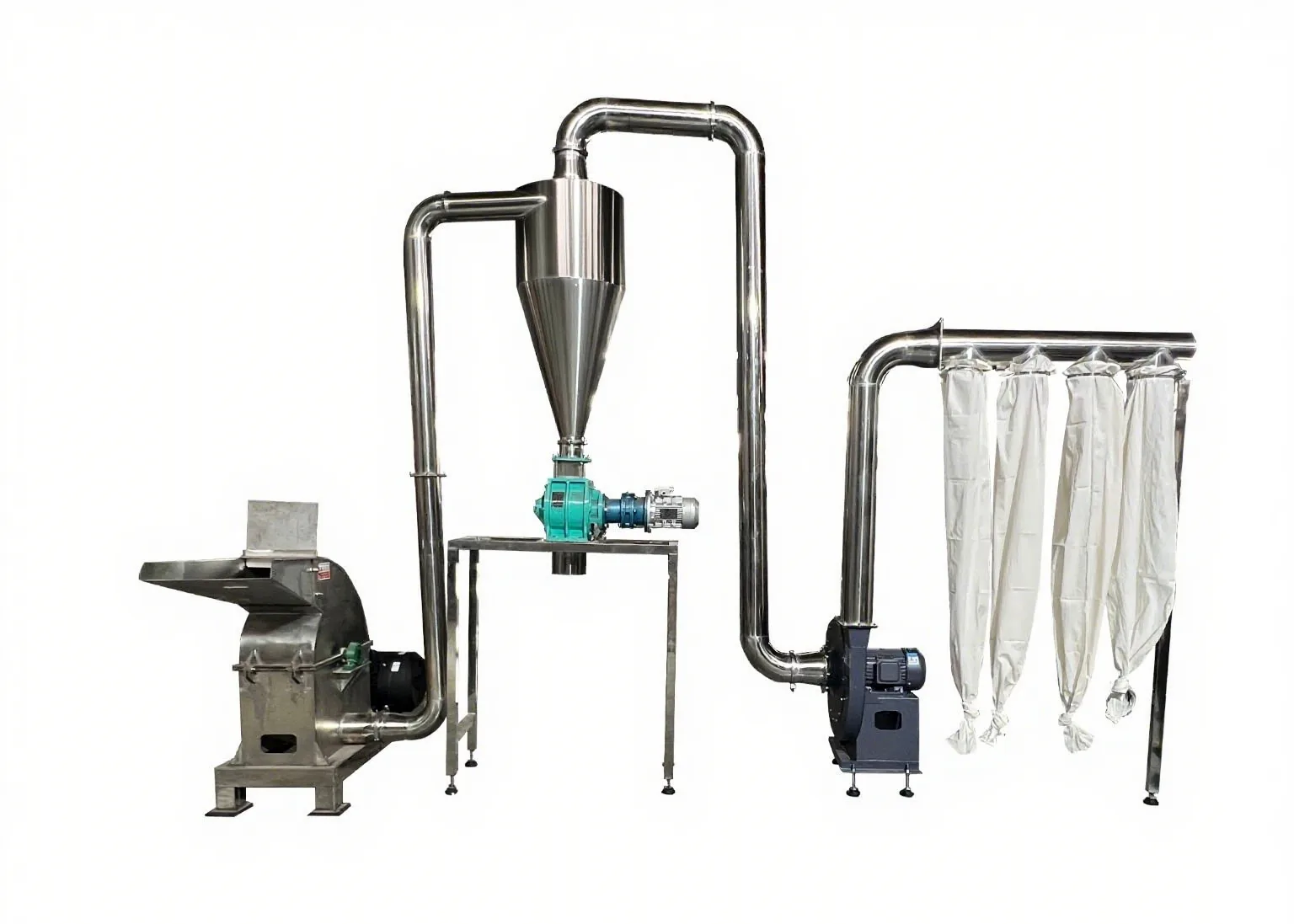

Grinding
The hammer mill reduces size to improve mixing, digestibility and pellet preparation.
Dosing and mixing
Macro- and micro-ingredients are weighed per recipe and mixed until evenly distributed.
Discharge and packaging
Feed is stored temporarily, transferred to optional pelleting or packaged as finished product.

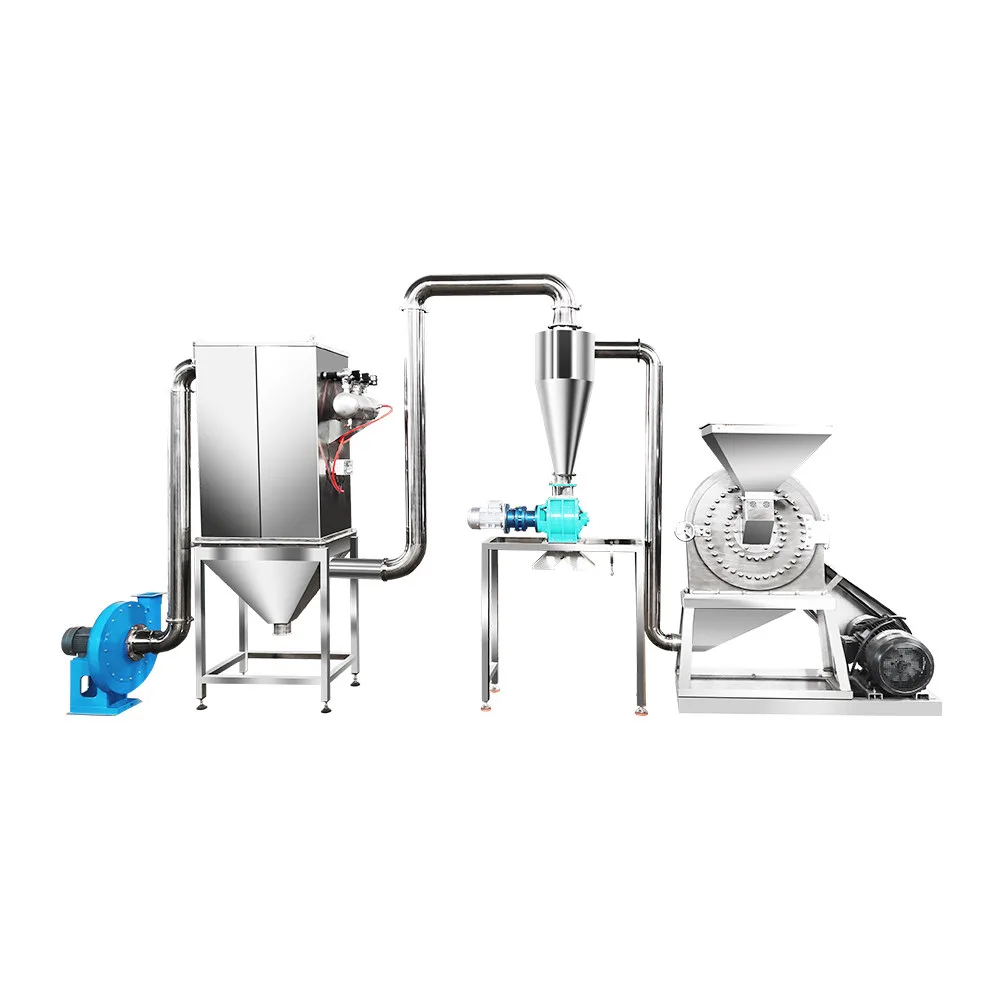

EQUIPMENT CONFIGURATION
A line tailored to your formula and capacity
The system is configured by number of ingredients, bulk density, final size and required automation level.
- Hoppers and conveyors for stable feeding.
- Hammer mill with dust collection.
- Macro- and micro-ingredient dosing.
- Ribbon mixer for homogeneous batches.
- Silos, valves and optional automatic bagging.
SOLUTIONS BY PRODUCT
Configurations for different applications
Ground feed for cattle and poultry
Grinding of cereals and fibrous materials with interchangeable screen, closed conveying and dust control.
Premixes and concentrates
Precise dosing of minerals, vitamins and additives with uniform mixing and lower segregation risk.
Complete automatic line
Receiving, grinding, weighing, mixing, storage and packaging coordinated via central control.
SELECTION REFERENCE
Parameters to define the plant
| Factor | Information required | Impact on design |
|---|---|---|
| Raw materials | Grain type, meal, moisture and density | Receiving, cleaning and mill type |
| Capacity | kg/h, daily hours and expected growth | Power, hopper volume and conveying |
| Final product | Ground feed, premix or pellet-ready | Fineness, mixing and discharge |
| Recipes | Number of ingredients and additive percentage | Dosing accuracy and control |
| Packaging | Bag weight, speed and automation | Final silo and filling system |
Let us design your feed production line
Send us the raw materials, capacity, final size, formula and available layout to prepare a technical configuration.
FREQUENTLY ASKED QUESTIONS
Questions about feed plants
What capacity can a feed line reach?
Capacity is configured according to raw materials and process. We can design systems from compact batch production to continuous industrial lines.
What fineness is recommended for animal feed?
It depends on species, animal age and whether the product is used as meal or before pelleting. The mill screen is chosen according to the nutritional goal.
How is segregation of vitamins and minerals avoided?
Through precise dosing, proper loading sequence, controlled mixing time and correct choice of mixer useful volume.
Can recipe changeover be automated?
Yes. The system can incorporate weighing, PLC, recipe storage, alarms and batch traceability.
